Plot an enrollment projection

Source: R/plot_enrollment.R
plot_enrollment.Rd

Draws the expected cumulative enrollment curve for a Goldilocks trial design, together with optional random enrollment trajectories and projected interim and maximum-sample-size milestones.

Usage

plot_enrollment(
  x = NULL,
  lambda = NULL,
  N_total = NULL,
  lambda_time = NULL,
  interim_look = NULL,
  end_of_study = NULL,
  n_sim = 20L,
  seed = NULL,
  time_unit = NULL,
  xlab = NULL,
  ylab = "Cumulative number of enrolled patients",
  main = NULL,
  annotate = TRUE,
  projection_col = "#276E9B",
  simulation_col = "#777777",
  milestone_col = "#C8682A"
)

Arguments

x

NULL (the default), or a result returned by survival_adapt() or sim_trials(). Results created by current versions of goldilocks retain the evaluated enrollment design needed by this function.

lambda

NULL (the default), or a numeric vector of finite, positive enrollment rates per unit of calendar time. It is required when x = NULL and otherwise overrides the rates stored in x.

N_total

NULL (the default), or a positive integer giving the maximum total sample size. It is required when x = NULL and otherwise overrides the value stored in x.

lambda_time

NULL (the default), or a numeric vector of finite, positive, strictly increasing calendar times at which the enrollment rate changes. See enrollment().

interim_look

NULL (the default), or a strictly increasing positive integer vector giving the cumulative enrollment at each interim look. All values must be less than N_total.

end_of_study

NULL (the default), or a single finite, positive numeric value giving the planned follow-up time for each subject. When available and annotate = TRUE, it is reported beneath the plot.

n_sim

A single non-negative integer giving the number of random enrollment trajectories to draw. The default is 20L; use 0 to show only the expected enrollment curve.

seed

NULL (the default), or a single integer between 0 and .Machine$integer.max for the random trajectories. A supplied seed gives reproducible trajectories and leaves the existing random-number state unchanged.

time_unit

NULL (the default), or a non-empty character string naming the design's unit of time, such as "months" or "days".

xlab

NULL (the default), or a character string for the horizontal axis label. When NULL, the label is constructed from time_unit.

ylab

A character string for the vertical axis label. The default is "Cumulative number of enrolled patients".

main

NULL (the default), or a character string for the main title.

annotate

A single logical value indicating whether follow-up and simulation notes should appear beneath the plot. The default is TRUE.

projection_col

A character string specifying the colour of the expected enrollment curve. The default is "#276E9B".

simulation_col

A character string specifying the colour of the random enrollment trajectories. The default is "#777777".

milestone_col

A character string specifying the colour of the interim and maximum-sample-size guides. The default is "#C8682A".

Value

Invisibly, a list containing the evaluated design, the projection data frame, the milestones data frame, and the simulated enrollment-time vectors in simulations.

Details

The blue projection is \(1 + \Lambda(t)\), where \(\Lambda(t)\) is the cumulative intensity of the piecewise-constant Poisson enrollment process. The first patient is fixed at time zero, consistently with enrollment(). A milestone's projected time solves \(1 + \Lambda(t) = N\). With a constant enrollment rate this is also the mean arrival time, \((N - 1) / \lambda\). With a piecewise rate it is an expected-count projection rather than the mean of the corresponding arrival-time distribution.

If x supplies a stored design, explicitly supplied design arguments override the corresponding stored values. This makes it possible, for example, to compare a fitted design with a different enrollment rate.

Examples

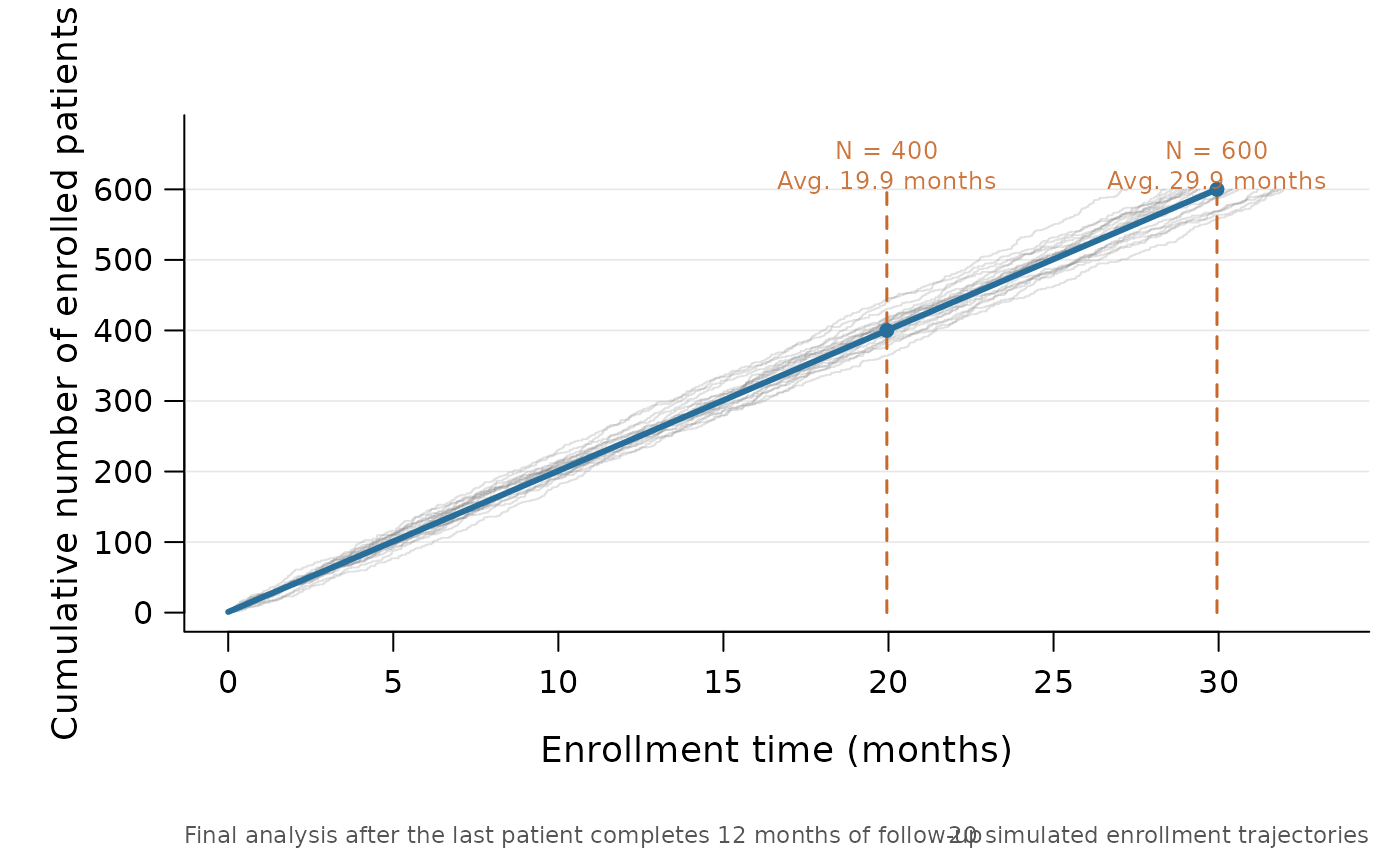

plot_enrollment(
  lambda = 20,
  N_total = 600,
  interim_look = 400,
  end_of_study = 12,
  n_sim = 20,
  seed = 20260727,
  time_unit = "months"
)


# Piecewise enrollment rates are supported.

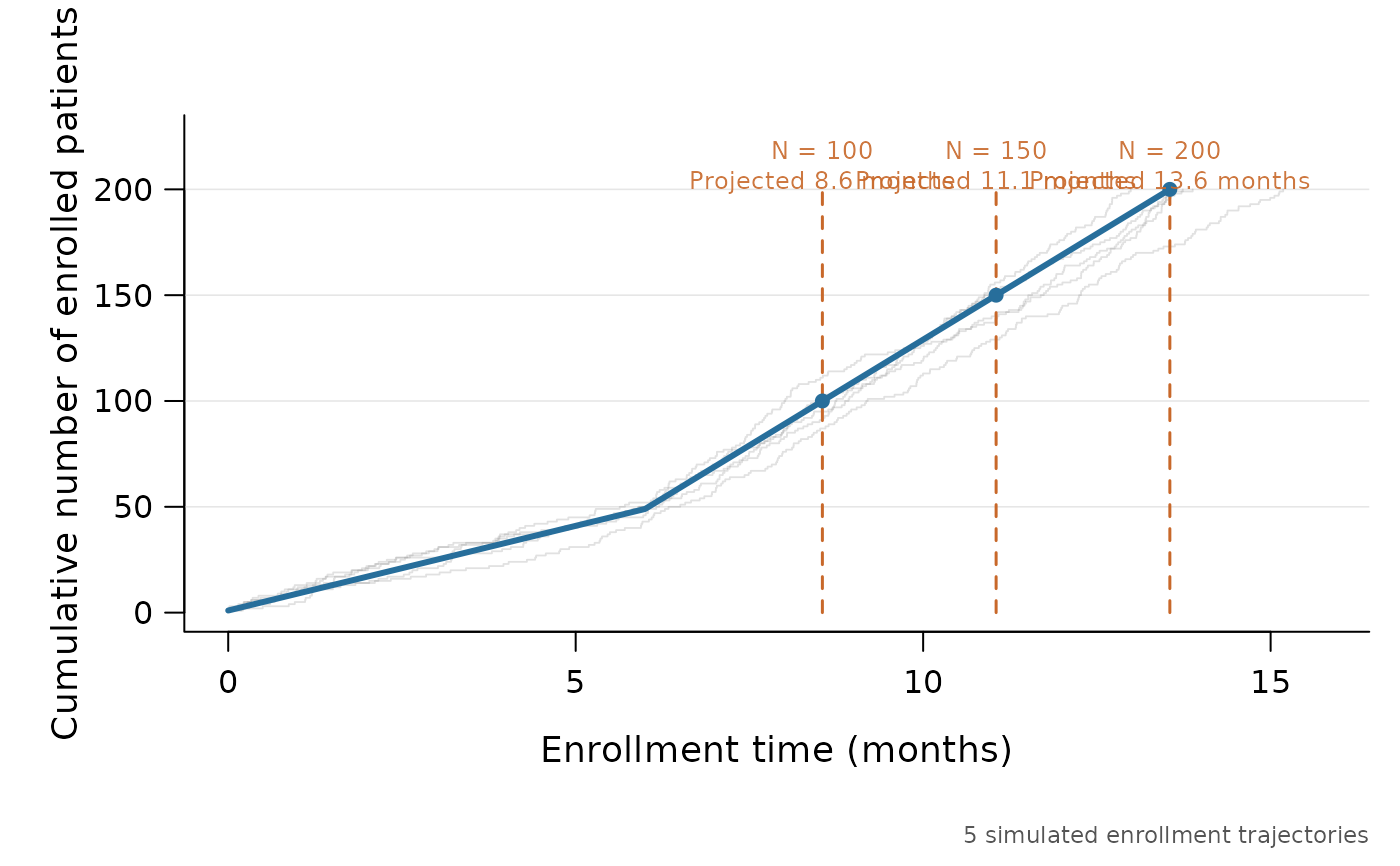

plot_enrollment(
  lambda = c(8, 20),
  lambda_time = 6,
  N_total = 200,
  interim_look = c(100, 150),
  n_sim = 5,
  seed = 1,
  time_unit = "months"
)
